Low cost rural areas Primary school

Type K-9 school
Location Egypt - Rural areas
Date 2013
Site area 1,200 m2
Total floor area 1,350 m2
Storeys Gr+3
Structure Concrete
Estimated cost 1,200,000 EGP
Situation Completed

Scope of services

Scope of services
- Master planning
- Architecture
- Interior
- Programming

An awarded architectural competition that was held by Misr El Kheir charity foundation, the main concept of the project was to design a low cost school prototype to be built in the most poor areas of Egypt where children don›t have any school in their villages.
The normal rate of school building in Egypt is 300,000 Egp per classroom including facilities, fence and landscape costs. The principal requirement of the foundation was to reach the price of 100,000 Egp per classroom to be able to build as much as possible of schools by reducing number of educational facilities to the minimum and getting innovative ideas of architectural firms.

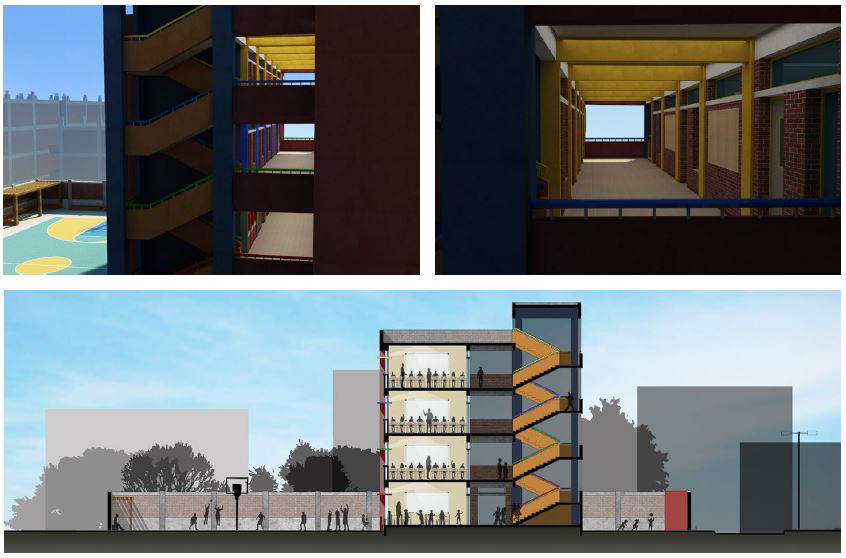

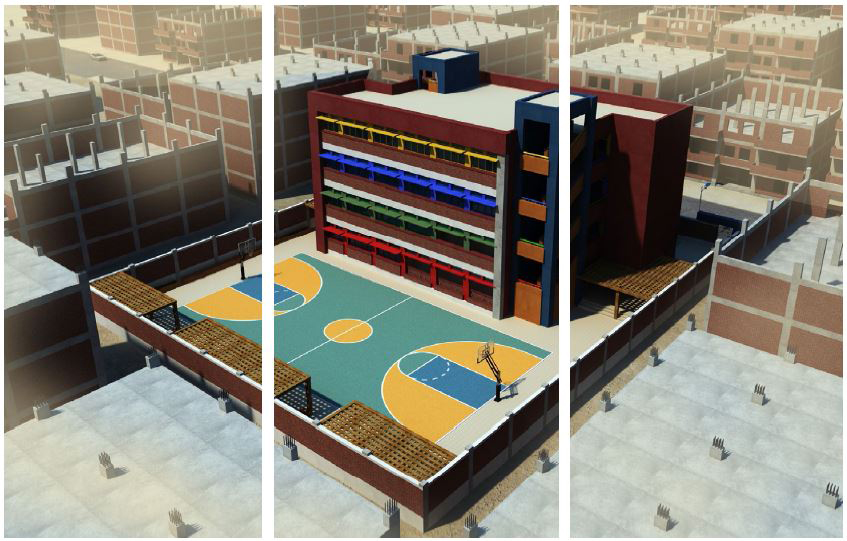

The concept of the design is to simulate the surrounding houses in rural villages in Egypt which is mostly bare concrete and rough clay bricks but in a more civilized and well designed way. We proposed to make the school building of the most familiar and economic structural system in the region which is (simple slab-beam-column) but in better formwork so the skeleton would just be painted directly without plaster. For the masonry works we proposed to make trainings for local masons (as an added value for the local to improve their competency of building leveled, grooved brickwork so that it would be exposed in facades.

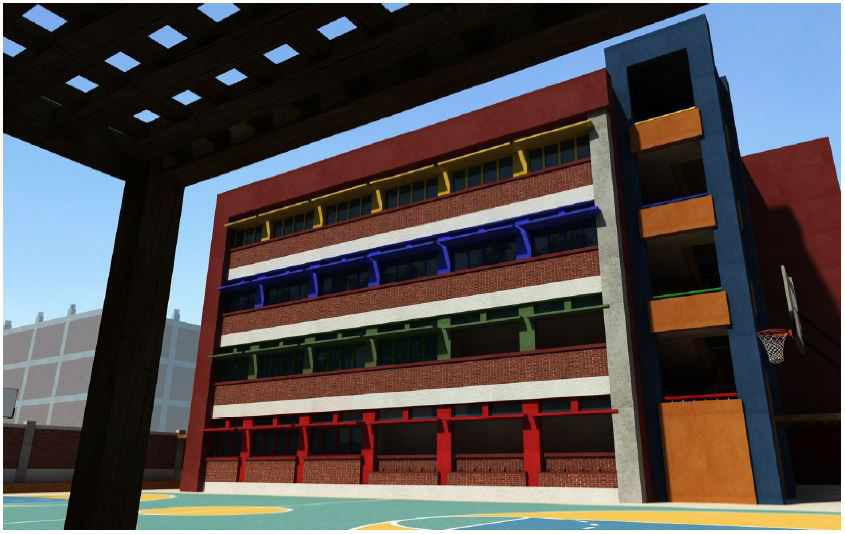

Colors were utilized in both external and internal elevations for the doors, structural elements, sun breakers and windows frames to visually identify floors of the building.

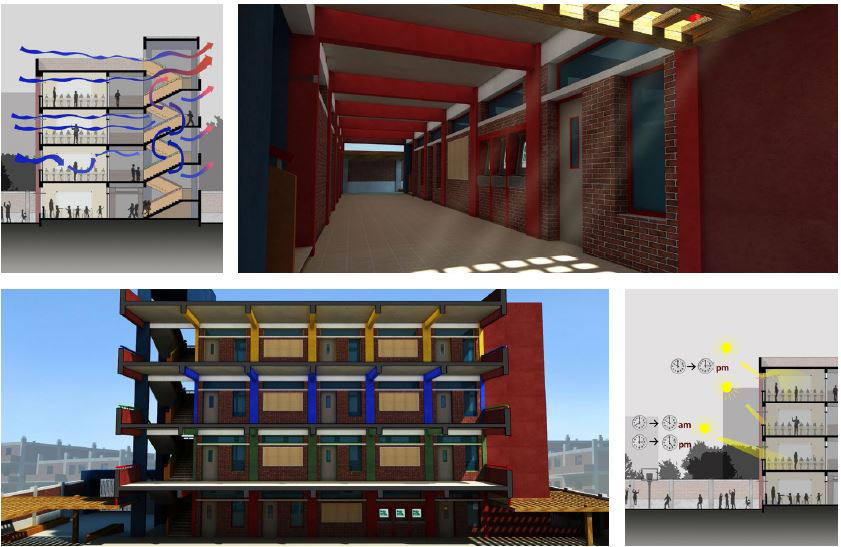

For achieving sustainability, shifted down horizontal sun breakers were studied for south elevation to prevent direct sun light and in the same time reflect indirect light throw the ceiling. Also other aspects of sustainability were applied, such as cross ventilation and recycled water for toilets› flush and irrigation.

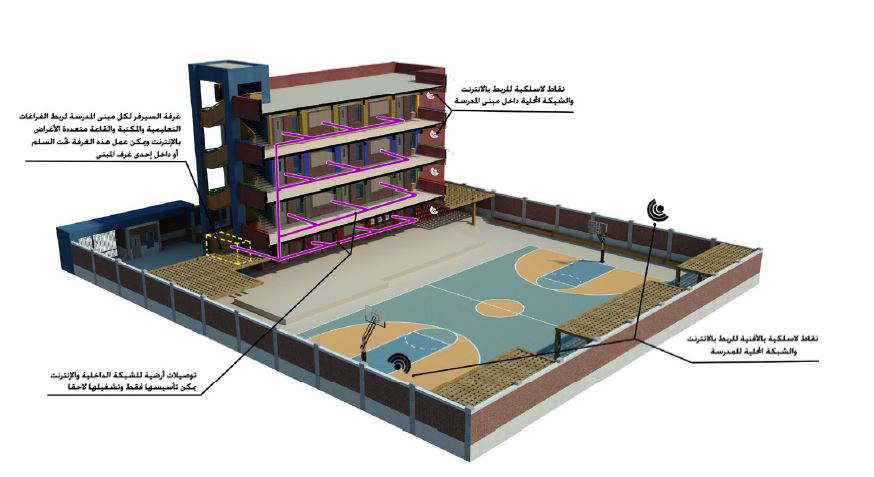

An innovative idea that came from India called (a hole in the wall) were applied in the project, by fitting a computer in an opening in the corridor for public use to improve students› competences in research and reading.
