Federal of contractors Office building

Type Office building
Location Egypt - Cairo
Date 2013
Site area 2,000 m2
Total floor area 17,200 m2
Storeys 2Bs+Gr+12
Structure Concrete
Estimated cost 50,000,000 EGP
Situation Completed

Scope of services

Scope of services
- Architecture
- Interior
- Programming
- Structure

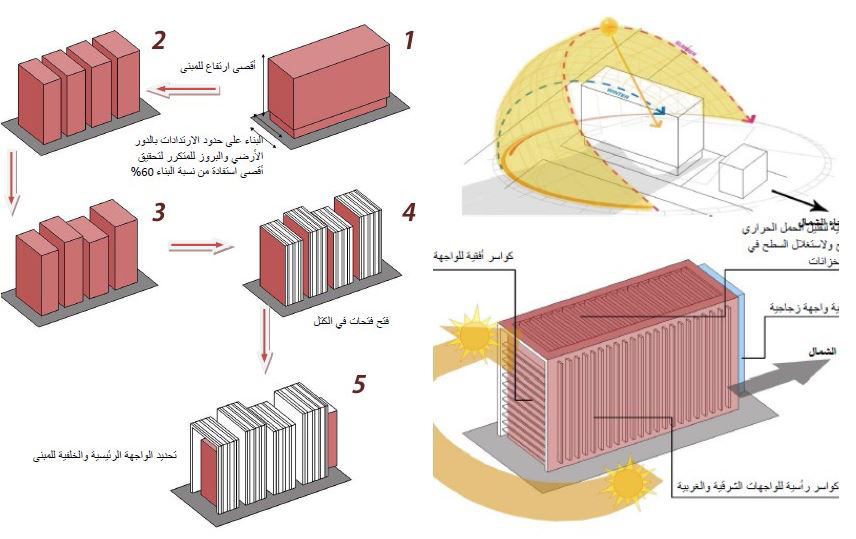

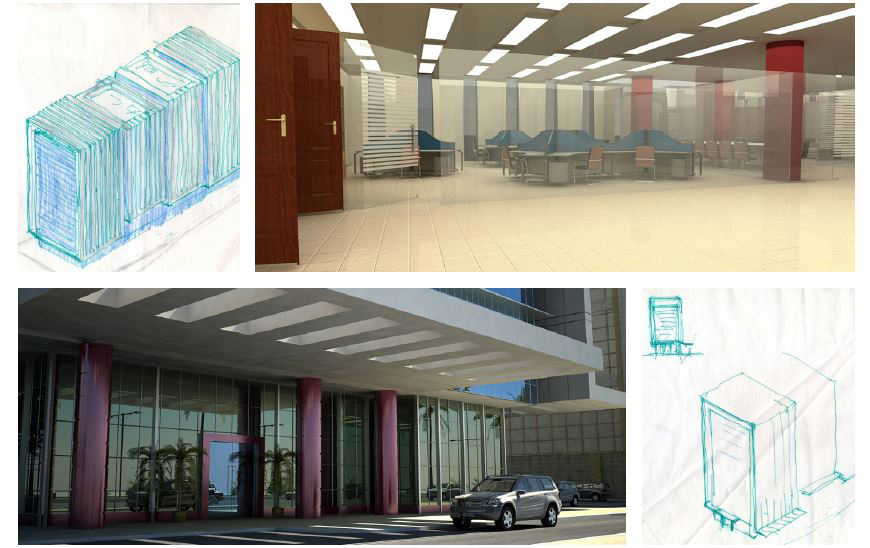

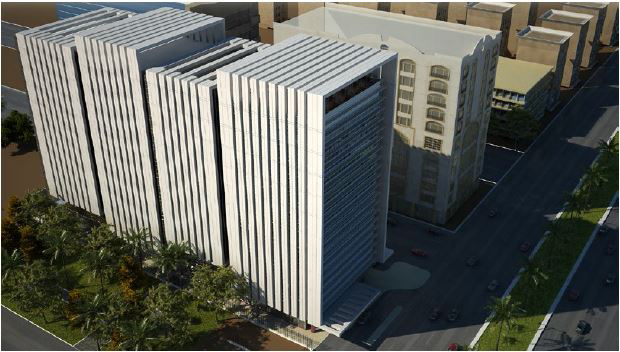

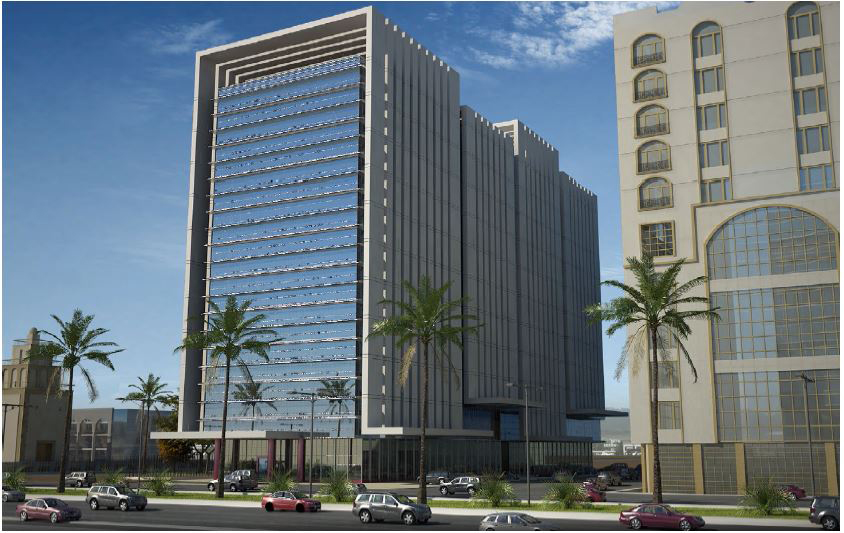

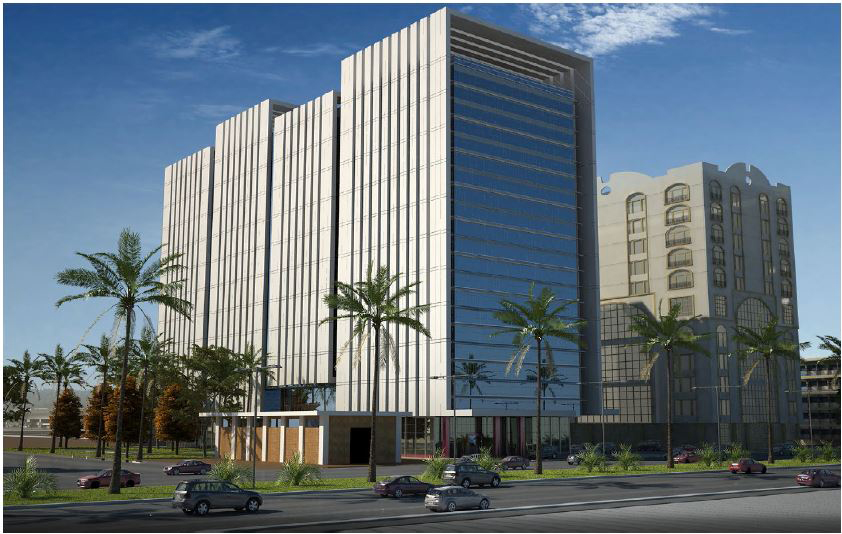

An office building for the Egyptian Federation for Construction Contractors which was intended to be a regional office for the Federation in Nasr city in Cairo. Designer has proposed an ultra-modern sustainable building formed of explicit masses with strip vertical windows in east and west facades, and full recessed glass facade in the south direction supported with horizontal sun breakers.

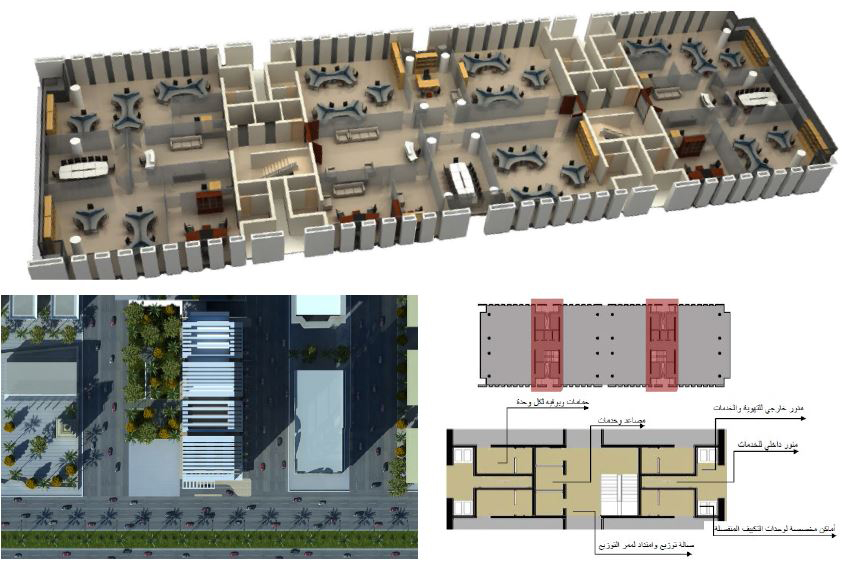

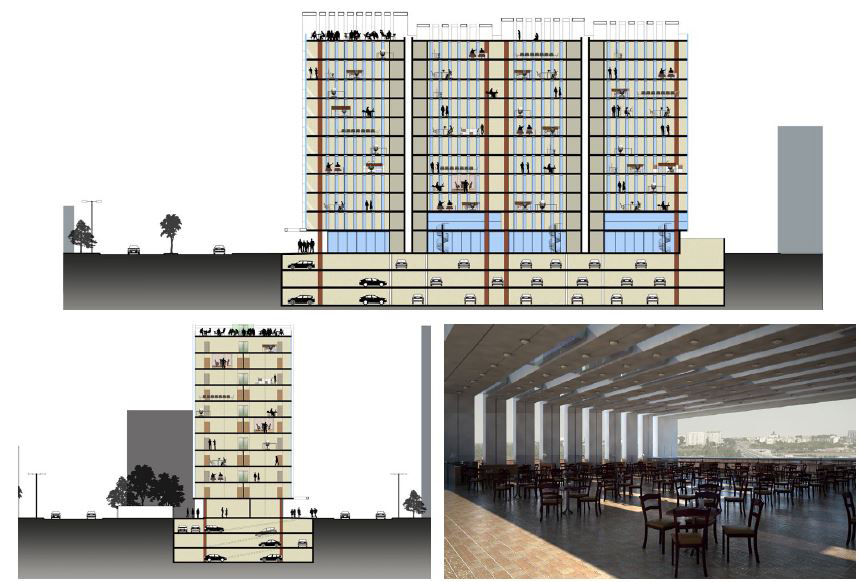

Plans were designed in a very flexible way with two cores that enables to separate and combine spaces in several ways, spaces were supplied with cool air from air cooled AC units which were hidden in the spaces between masses of the project, and project was supported with three basement floors for car parking and a large roof terrace withe greate view used as the building cefeteria and restaurant.
